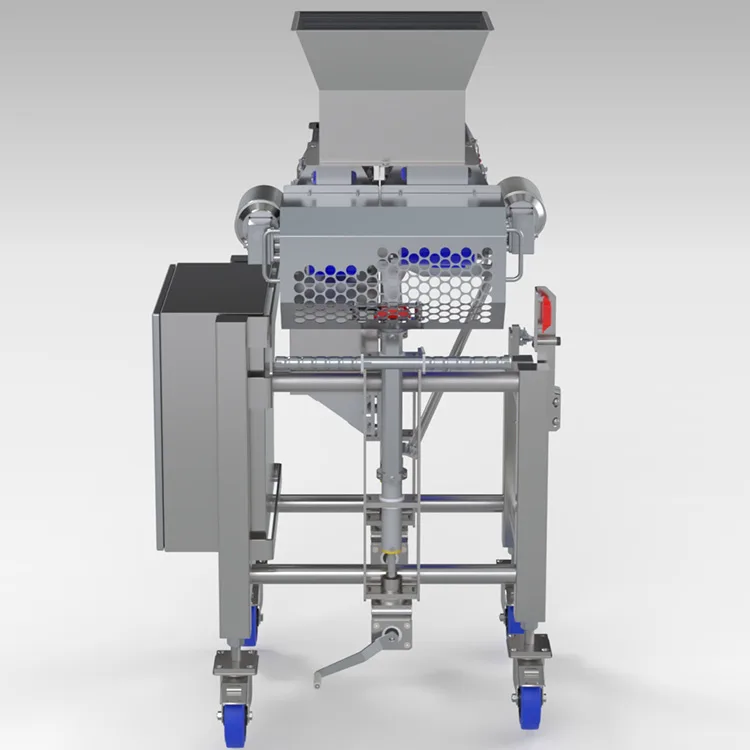

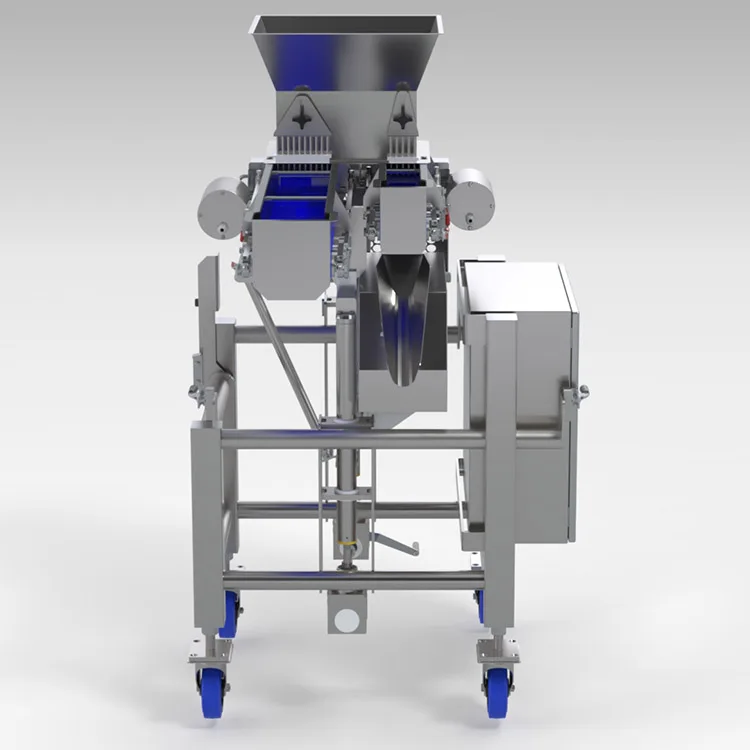

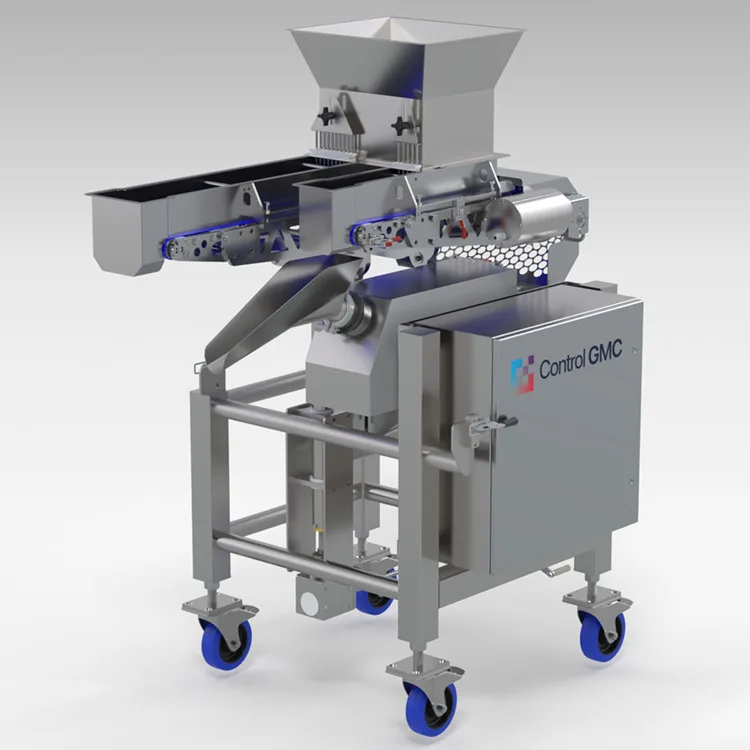

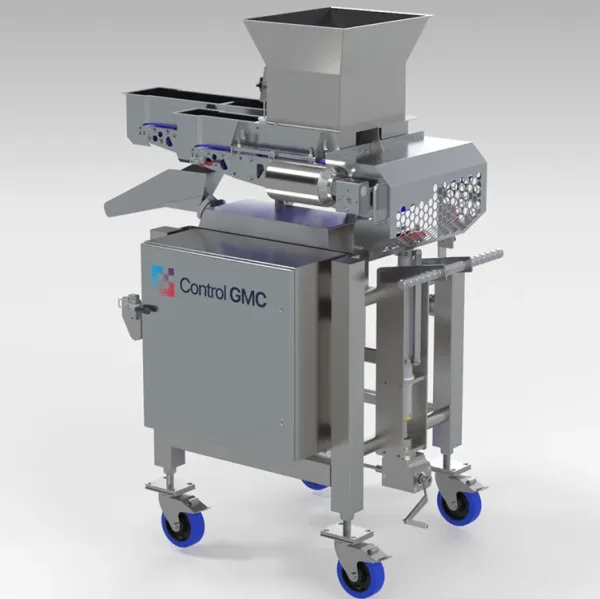

DM1600 Dry Product Weigh Filler
The DM1600 is a fully automatic two-stage Dry Product Weigh Filler designed for dosing solid or crumbled products wet or dry with speed and precision. Its dual linear vibratory conveyor system, delivers fast, high-accuracy fills by combining bulk and fine dosing, ensuring performance, consistency, and product integrity in demanding environments.
Ideal for:
- Granular Products:
Like nuts, pasta, dry mixes, and pet food applications - Double the Speed:
Faster filling cycles for increased productivity - Double the Precision:
Direct and accurate filling into containers with minimal waste
Details
| Details | |
|---|---|
| Features & Benefits | 2 Belt conveyors: 1 for the fast filling of the container / 1 to transfer the product to the vibratoryconveyor, 2 Container weight measuring scales integrated into the indexing conveyor under the containers in front of the conveyors, All product-contact parts in stainless steel, Dual-stage linear vibratory dosing for speed and precisio, Easy maintenance, Flexibility: simple & quick container size changeover, Height-adjustable welded frame, High accuracy with high-speed scale controller, High-speed performance, HMI user-friendly touch-screen, NEMA 4X wash-down stainless steel control box ensuring safe operation in cold environments, PLC-controlled system, Rectangular hopper to feed 2 belt conveyors, Safeguard product quality & integrity, Signal conditioning transmitter to manage the load cells inside the conveyor, Vibratory conveyor |
| Option & Accesories | Corrosion protection: additional protection against brine chlorides and acids is available for corrosive environments, Customized hopper size, Level sensor for hopper feed management |
